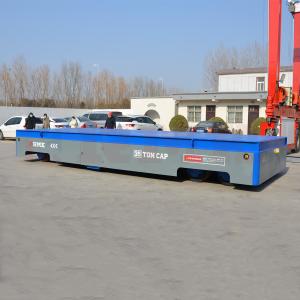

Electric 35 Tons Heavy Duty Transfer Cart For Material Transferring Hand Pendant
Henan Remarkable Company Designs And Manufactures A Wide Range Of Battery Motorized Trolleys, Intelligent Self-Propelled Trailers, Transfer Carts, Die Carts, Industrial Trailers, Tilters, Upenders And Lifting Platforms That Operate In Several Industrial Sectors: Metallurgy, Oil & Gas, Shipyards, Automotive, Aerospace, Power Generation, Paper Mills, Metal Working And Many Others!
Product Advantages:
1. Trackless Transfer Cars Can Meet The Needs Of Different Turning Directions.
2. It Can Satisfy Free Left-Right Steering And 360-Degree In-Situ Rotation.
3. The Trackless Transfer Cars Can Be Equipped With An Optional Human Encounter Detectiondevice, Which Can Detect Obstacles Or People In The Running Direction In Time Andautomatically Control The Cart To Stop.
4. The Power Supply Mode Of Trackless Transfer Carts Can Be Selected, And Different Powersupply Modes Can Be Used According To Different Road Conditions.
| Technical parameters for trackless electric transfer carts |
| rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| structure of frame | steel plates welded, beam structure |
| max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 |
| ground requirement | cement floor | steel plate ground |
| table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000×2300 |
| height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 |
| ground clearance(mm) | 50 |
| wheels base(mm) | 1500 | 1700 | 1800 |
| axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| turning type | turning while driving with no stop |
| control method for turning | control button |
| turning structure | mechanical |
| motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| wheel diameter(mm) | 300 x 4 | 350 x 4 | 400 x 4 | 400 x 6 | 500 x 6 |
| wheel material | ZG55+hydropur ture |
| running speed(m/min) | 0-20 |
| brake principle | electric magnetic brake |
| operation method | with wire or no wire |
| battery maintenance | free of maintenance |
| charger's installation | installed on cart | split-type |
| radar control | 3-0.3m, automatic stop for obstacles |
| warning equipment | sound and light |
| other functions | turning light, night light and power display |
The Trackless Electric Flat Car Is A Wheeled Handling Equipment That Can Be Steered Arbitrarily By Manual Control. It Can Help Solve The Problems Of Limited Space, Equipment That Cannot Be Deployed, The Need For Transition Operations, And The Difficulty Of Equipment Disassembly And Transportation.
Henan Remarkable Trackless Electric Flat Car Is A Wheeled Handling Equipment That Can Be Steered At Will By Manual Control. Its Power Supply Mode Is Battery Power Supply. The Driving Wheels And Load-Bearing Wheels Can Be Selected From High-Strength Polyurethane Rubber Solid Tires Or Pneumatic Tires. Limited By Space And Ground, The Walking Direction And Route Can Be Changed At Any Time, Which Is Very Suitable For Use In Occasions Where The Running Route Is Not Fixed.
Henan Remarkable Specializes In The Production Of More Than 80 Products Such As Electric Flat Cars, Rail Flat Cars, Trackless Electric Flat Cars, Ladle Cars, Etc. It Is A Manufacturer Of Electric Flat Cars As The Main Products. According To The Needs Of Car Users, Our Company Can Tailor-Design And Customize Spare Parts For Electric Flat Cars Of Various Specifications And Models For Customers To Update, Replace Or Transform Electric Flat Cars, Reducing The User's Investment Cost.
