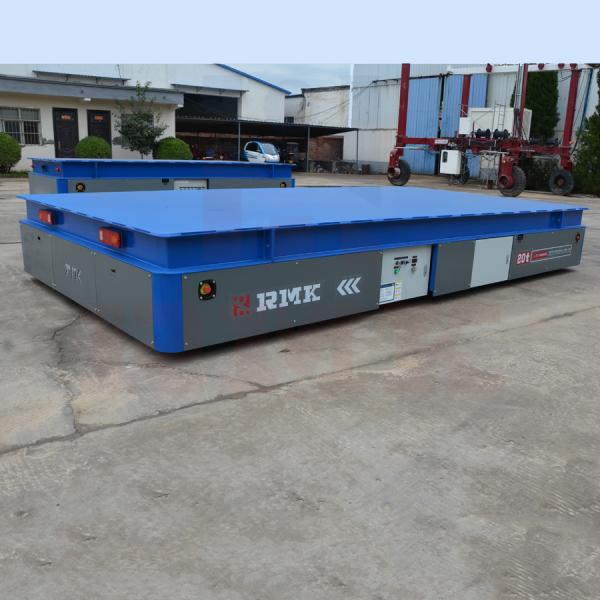

Battery Operated Remote Control 20 Tons Pallet Transfer Cart
Our 20 Tons Pallet Motorised Transfer Cart Is Powered By Battery. It's Trackless And Consists Of Steel Structure Bearing Frame. When The Current Get In The Electric Control System, The Machine Is Powered To Make The Trolley Stop, Start, Move Forward And Move Backward. According To Clients' Requests, We Can Provide Different Kinds Of Products You Want.
The Steerable Battery Transfer Trolley Is A Kind Of Trackless Material Handling Cart With Lifting System Running On The Cement Floor. This Kind Of Battery Transfer Trolley Adopts Battery Power, DC Motor Drives, Large Capacity, Stable Start, Do Not Rely On Rail, Tow-Way Travel. The Hydraulic Steering Mechanism Ensures A Tight Turning Radius, Enabling 360° Turn In A Small Space.
Benefits Of Transfer Carts:
These Are The Advantages Included In Using Heavy Duty Transporters:
Low Noise And Easy To Maintain
It Causes Low Noise Level
Easy And Low Maintenance
Free Of Movement Inside The Plant
Can Work Along With Other Lifting Devices
Really Safe
Offers Guarantee Of Maximum Safety For Operators Handling Heavy Loads And For The Material Handled. We Really Care About The Safety Of Everyone Involved In The Job.
Easy To Operate
These Vehicles Are Easy To Drive, So As Soon As You Get It You Will Be Able To Use It To Transport Your Loads. At Henan Remarkable We Will Support You And We Are Available To Make The Best Out Of Your Heavy Load Transporter.
| Technical parameters for trackless electric transfer carts |
| rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| structure of frame | steel plates welded, beam structure |
| max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 |
| ground requirement | cement floor | steel plate ground |
| table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000×2300 |
| height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 |
| ground clearance(mm) | 50 |
| wheels base(mm) | 1500 | 1700 | 1800 |
| axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| turning type | turning while driving with no stop |
| control method for turning | control button |
| turning structure | mechanical |
| motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| wheel diameter(mm) | 300 x 4 | 350 x 4 | 400 x 4 | 400 x 6 | 500 x 6 |
| wheel material | ZG55+hydropur ture |
| running speed(m/min) | 0-20 |
| brake principle | electric magnetic brake |
| operation method | with wire or no wire |
| battery maintenance | free of maintenance |
| charger's installation | installed on cart | split-type |
| radar control | 3-0.3m, automatic stop for obstacles |
| warning equipment | sound and light |
| other functions | turning light, night light and power display |
