Shipyard Transfer Cart
The shipyard transfer cart is an electrically driven material transfer vehicle that is designed and manufactured to apply in the shipyard. Remarkable shipyard transfer car large capacity electric transporter designed for shipyard material transport. We can produce the shipyard transporter according to as your special demands. The loading capacity could be from 1 ton to 500 tons.
The power supply can be chosen according to different applications, such as battery-powered, low voltage railway powered, cable reel powered, towed cable powered, busbar powered, and so on.
Remarkable shipyard transfer carts can be divided into two types:
Rail Guided Type: This kind of transfer vehicle is running on the rails, it can be powered by a battery, low voltage tracks, busbar, cable reel, etc.

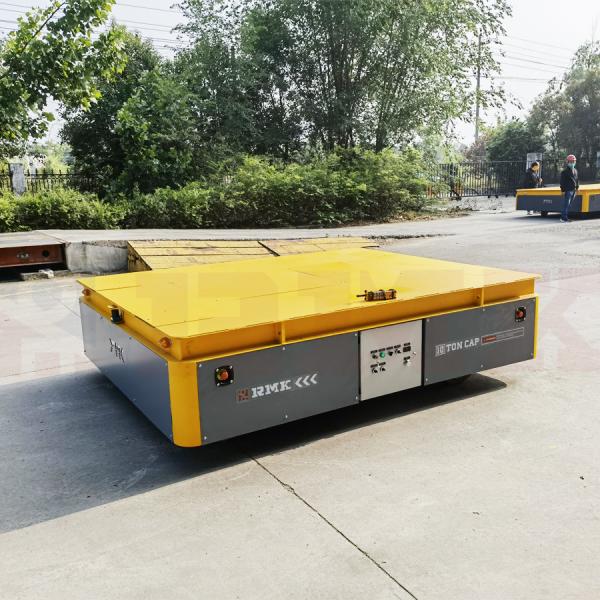

Trackless Type: This kind of transfer vehicle adopt PU wheels, it can run on the floor directly, with no need for rails. It is mainly powered by a battery. Of course, Remarkable can customize different types of transfer vehicles as per your demand.
| Technical parameters for trackless electric transfer carts |
| Rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| Impacted rated loa(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| Structure of frame | steel plates welded, beam structure |
| Max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
| Ground requirement | cement floor | steel plate ground |
| Table size(mm) | 3000×
2000 | 3600×
2000 | 4000×
2200 | 4500×
2200 | 5000×
2200 | 5500×
2300 | 6000×
2300 | 10000×
3000 |
| Height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
| Ground clearance(mm) | 50 | 75 |
| Turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| Turning type | turning while driving with no stop |
| Control method for turning | control button |
| Turning structure | mechanical |
| Wheel material | ZG55+hydropur ture |
| Running speed(m/min) | 0-15 | 0-12 |
| Brake principle | electric magnetic brake |
| Operation method | with wire or no wire |
| Battery model | D-250x24 | D-33x24 | D-400x24 | D-440x24 | D-250x36 | D-330x36 | D-440x36 | D-600x36 |
| Battery maintenance | free of maintenance |
| Charger's installation | installed on cart | split-type |
Latest technology based shipyard transport cart systems
Finding applications in industrial units for diverting/merging unit loads between multiple lanes
This series of transport carts are suitable to be applied in the bed environment, for example, in high-temperature and anti-explosion conditions.
Available in options of the single deck or double deck versions
Coming with suitable lift support for addressing multiple receiving and delivery levels
Requires less maintenance
Fixed or variable speeds with forwarding/reverse function
Safety features can be equipped including horns, flashing lights, e-stops, bumpers, and collision avoidance systems
The transfer cart can also be customized as per the specifications provided by customers
